Samsung UE65KS8000 Review: Big Screen Beauty

Vincent Teoh

No TV manufacturer offers more Ultra HD Premium TVs than Samsung in 2016, and the UE65KS8000 is yet another outstanding SUHD model from the South Korean consumer electronics giant. It’s the highest-specced flat-panel television from the company, featuring 65-inch screen size, 3840×2160 UHD (ultra high-definition) resolution, 10-bit panel, edge-lit LED backlighting, quantum dot colours, Ultra HD Premium-certified HDR support, and Tizen-based Smart TV platform. There’s no 3D capability on board.

Samsung UE65KS8000

The 65KS8000 is also the first 65in TV we’ve seen from Samsung this year that doesn’t use full-array local dimming (FALD) backlight technology. While the display still used the same bottom-mounted LED configuration to illuminate the entire screen, we’re pleasantly surprised to find a small increase in the number of pseudo-local dimming zones compared with its 55in sibling which we reviewed a few months ago.

Thermal scan
Thermal scan indicating bottom-mounted edge LED placement

Using our custom-authored test pattern consisting a small white box crawling horizontally then vertically along the borders of a black background, we counted 16 vertical columns of dimmable zones spanning the entire height of the screen, although depending on the content shown, at least 3 or 4 consecutive ones would be switched on simultaneously to keep blooming/ haloing artefacts to a minimum. The 55-inch UE55KS8000 has at most 12 vertical zones.

Otherwise, the 65″ KS8000 delivered all the strong points we’ve come to expect from a 2016 Samsung SUHD television. The VA-type LCD panel yielded blacks that were convincingly deep by LED LCD standards, measuring 0.038 cd/m2 on a 4×4 ANSI chequerboard pattern regardless of [Smart LED] setting once we pegged peak white to our normal dark-room target of 120 cd/m2.

Subpixel layout
Macro photo of subpixel structure confirming full RGB VA-type LCD matrix

With black frame insertion (BFI) activated by enabling [LED Clear Motion], the Samsung UE65KS8000 – in fact the entire KS7000, KS7500, KS8000 and KS9000 series – provided the highest motion resolution available on the market at this time of writing without introducing soap opera effect or interpolation artefacts, fully resolving 1080 lines (or even higher) according to the horizontally scrolling lines in Chapter 31 of the FPD Benchmark Software test disc. Bizarrely, the 65KS8000’s motion rendition was even clearer than the flagship 65KS9500 whose BFI was still broken on the latest firmware. Together with excellent screen uniformity (at least on our review sample) and flat form factor, this level of high motion clarity made watching sports a joy on the Samsung KS8000.

[Auto Motion Plus] Custom[LED Clear Motion]
[Auto Motion Plus] “Custom”[LED Clear Motion] “On”

Another area where Samsung TVs lead the chasing pack is gaming responsiveness, and indeed the UE65KS8000 didn’t disappoint. Our Leo Bodnar input lag tester returned an input lag of merely 20ms, contributing to a snappy and gratifying gaming experience.

Input lagInput lag in HDR mode
Input lag in [Game] modeInput lag in HDR [Game] mode

Crucially, input lag was similar low in HDR [Game] mode too (22ms), which will appeal greatly to users who wish to play HDR games such as Forza Horizon 3, Gears of War 4 and Deus Ex: Mankind Divided on Microsoft Xbox One S or PS4 Pro consoles. Note that all the picture settings including [Backlight], [Smart LED] and [Dynamic Contrast] stayed the same in [Game] mode on the same HDMI input irrespective of whether it’s in SDR (standard dynamic range) or HDR, so for playing HDR games, you may need to make the necessary adjustments to hit the high peak brightness demanded by HDR.

Talking of which, our Samsung UE65KS8000T review unit reached a peak brightness of 1440 nits on UHDA-specified window sizes for UHD Premium certification, though this could only be sustained for 20+ seconds before dropping gradually to 550 nits which incidentally was also the full-field white peak brightness. Specular highlights sparkled with brilliance, with highlight detail up to 4000 nits preserved through clever tone-mapping, although from time to time the HDR image would look more washed out compared with the step-up KS9500 which can control 150 local dimming zones independently.

For viewers who wish to watch movies in the manner intended by directors, the Samsung UE65KS8000 could be calibrated to highly accurate levels not only for SDR (D65 white point, 2.4 gamma, Rec.709 colours), but also to track ST.2084 PQ (perceptual quantisation) EOTF (electro-optical transfer function) standard for HDR10. Our calibration gear used included a profiled Klein K10-A meter, a Murideo Fresco Six-G signal generator, as well as SpectraCal’s CalMAN 2016 software.


Pre-calibration RGB Tracking
Pre-calibration Delta errors
Pre-calibration [Movie] mode RGB tracking and delta errors (dEs)
Post-calibration RGB Tracking
Post-calibration Delta errors
RGB tracking and dEs after 2- and 10-point [White Balance] calibration

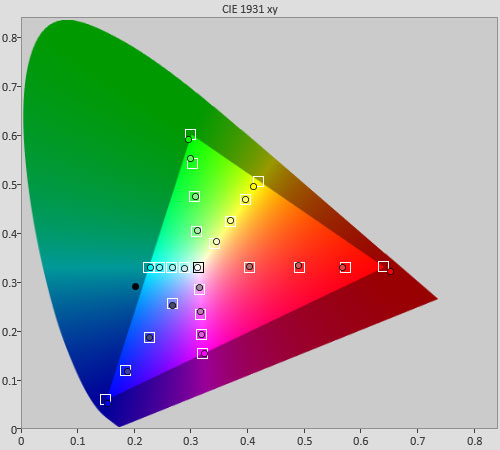

Post-calibration colour saturation tracking in [Movie] mode
Post-cal colour saturation tracking against Rec.709 standard
Post-calibration colour errors in [Movie] mode
Post-calibration colour errors (<3 not appreciable to the eye)
Post-calibration colour checker
Post-calibration Colour Checker SG test
Post-calibration colour checker errors
Post-calibration Colour Checker SG errors (<3 not appreciable to the eye)


Post-calibration RGB Tracking in HDR [Movie] mode
Post-calibration HDR [Movie] mode RGB tracking and delta errors (dEs)
Post-calibration PQ EOTF Tracking in HDR [Movie] mode
Post-cal PQ EOTF tracking against ST.2084 standard
Post-calibration colour saturation tracking in HDR [Movie] mode
Post-cal HDR colour tracking against DCI-P3 standard within Rec.2020 container

Of course, the UE-65KS8000 was not flawless: its bottom-mounted edge LED configuration meant that the top-and-bottom letterbox bars in cinemascope films couldn’t be blackened (some gentle bias lighting would help); the 4000-nit tone-mapping had a tendency to exhibit posterisation at certain luminance levels; and the TV wasn’t completely free of motion hiccups (e.g. stuttering during the transition from slow-mo replay to live sports action) in interlaced broadcast material. None were dealbreakers.

Benchmark Test Results

Dead pixelsNone
Backlight/ screen uniformityVery good; top 1cm border slightly brighter
Overscanning on HDMIDefeatable
Blacker than blackPassed
Calibrated black level (black screen)LEDs shut off
Calibrated black level (4×4 ANSI)0.038 cd/m2
Black level retentionStable if [Smart LED] “Off
Primary chromaticityGood
ScalingVery good
Video mode deinterlacingEffective jaggies reduction
Film mode deinterlacingPassed 2:2 & 3:2 tests in SD, though HD loses lock
Viewing angle (cone)60°
Motion resolution1080 lines or higher with [Auto Motion Plus] enabled
Digital noise reductionOptional; effective when enabled
SharpnessDefeatable edge enhancement
Luma/Chroma bandwidth (2D Blu-ray)Full Luma; Chroma vertically blurred
1080p/24 capabilityNo judder
2160p/24 capabilityNo judder
Measured panel refresh rate120Hz
Measured peak brightness1440 cd/m2
Measured DCI-P3 coverage97%
Input lag (Leo Bodnar tester)20ms in [Game] mode
Lag in HDR mode22ms in HDR [Game] mode
Full 4:4:4 reproduction (PC)Yes for both 1920×1080 and 3840×2160@60Hz

Power Consumption

Default [Standard] mode134 watts*
Calibrated [Movie] mode74 watts
HDR mode174 watts
Standby<1 watt

*Note: By default, [Eco Sensor] was engaged in out-of-the-box [Standard] mode.


The Samsung UE65KS8000 is one of the best sub-£2000 65-incher you can buy new on the market at this time of publication (Dec 2016), particularly if motion sharpness and low-lag gaming responsiveness even in HDR mode are important to you.
